TechSquare Rental_CCTV_HIKVISION BULLET CAMERA DS-2CD2043G0-I

TechSquare Rental_CCTV_Hikvision IR Bullet IR 4

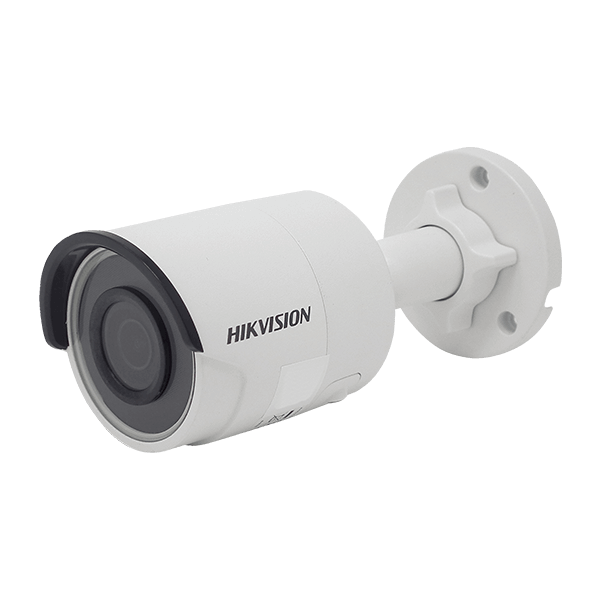

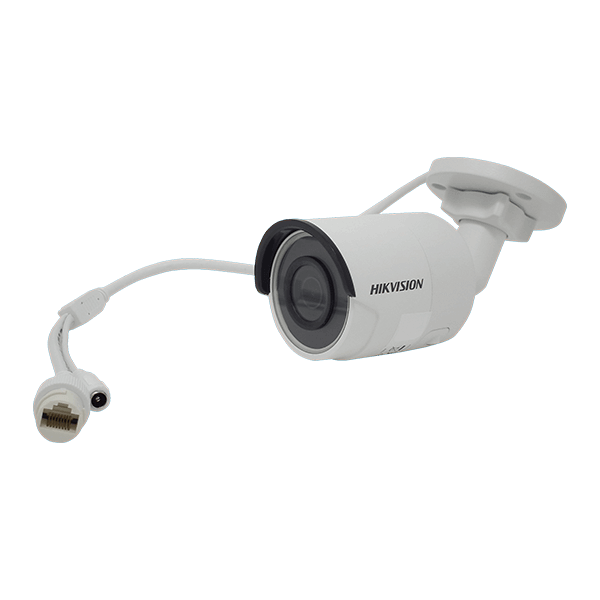

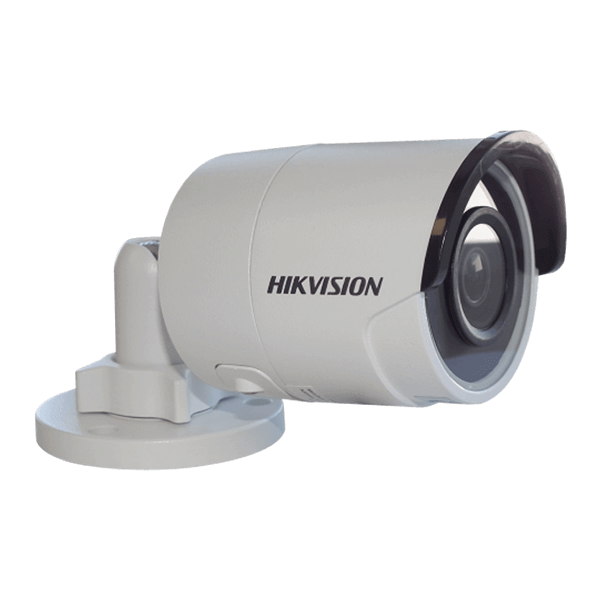

HIKVISION DS-2CD2043G0-I BULLET CAMERA

4 MP IR Fixed Bullet Network Camera

SKU: DS-2CD2043G0-I Categories: CCTV, SURVEILLANCE & COUNTERS Brand: Hikvision

Description
Additional information

4 MP IR Fixed Bullet Network Camera

HIKVISION BULLET CAMERA DS-2CD2043G0-I IR 4MP Outdoor Network Bullet Camera from Hikvision uses a 1/3″ progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. IR LEDs provide up to 100′ of night vision. The camera’s 4mm fixed lens delivers an 83° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

HIKVISION BULLET CAMERA DS-2CD2043G0-I, complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. The camera’s metal enclosure is IP67 rated for outdoor use.

Features:

1/3″ Progressive Scan CMOS
2688 ×1520@30fps
2.8/4/6/8mm fixed lens
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
H.265+, H.265, H.264+, H.264
Three streams
120dB WDR
2 Behavior analyses, and face detection
BLC/3D DNR/ROI/HLC
IP67
Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
3-Axis adjustment

Downloads:

Specs Sheet

Weight	0.70 kg
Dimensions	21.6 × 12.1 × 11.8 cm
Image Sensor	1/ 3 " Progressive Scan CMOS
Min. Illumination	Color: 0.0 1 Lux @ (F1. 2 , AGC ON), 0.0 1 8 Lux @ (F 1.6 , AGC ON), 0 Lux with IR
Shutter Speed	1 /3 s to 1/100,000 s
Slow Shutter	Yes
Auto - Iris	No
Day & Night	IR Cut Filter
Digital Noise Reduction	3D DNR
WDR	120dB
3 - Axis Adjustment	Pan: 0 ° to 3 60 ° , tilt: 0 ° to 90 ° , rotate: 0 ° to 3 60 °
Focal length	2.8 /4/6/8 mm
Aperture	F1.6
Focus	Manual
FOV	2.8 mm: h orizontal FOV : 98 ° , v ertical FOV : 5 5 ° , d iagonal FOV : 1 1 4° 4 mm: h orizontal FOV : 78 ° , v ertical FOV : 4 2 ° , d iagonal FOV : 93 ° 6 mm: h orizontal FOV : 48 ° , v ertical FOV : 27 ° , d iagonal FOV : 54 ° 8 mm: h orizontal FOV : 37 ° , v ertical FOV : 2 1 ° , d iagonal FOV : 44 °
Lens Mount	M12
IR Range	Up to 30 m
Wavelength	850nm
Video Compression	Main stream: H.265/H.264 S ub – stream: H.265/ H.264/MJPEG Third stream: H.265 /H.264
H.264 Type	Main Profile /High Profile
H.264+	Main stream and sub – stream support
H.265 Type	Main Profile
H.265+	Main stream and sub – stream support
Video Bit Rate	32 Kbps to 16 Mbps
Behavior Analysis	Line crossing detection, intrusion detection
Face Detection	Yes
Region of Interest	1 fixed region for main stream and sub – stream
Max. Resolution	2560 × 1440
Main Stream	50Hz:25fps (2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2560 × 1440, 2304 × 1296, 1920 × 1080)
Sub - Stream	50Hz : 25fps ( 640 × 480 , 640 × 360 , 320 × 240 ) 60Hz : 30fps ( 640 × 480 , 640 × 360 , 320 × 240 )
Third Stream	50Hz: 25fps ( 1280 × 720 , 640 × 360 , 352 × 288) 60Hz: 30fps ( 1280 × 720 , 640 × 360 , 352 × 240)
Image Enhancement	BLC/3D DNR
Image Setting	Rotate mode, saturation, brightness, contrast , sharpness adjustable by client software or web browser
Target Cropping	No
Day/Night Switch	Auto/Schedule
Network Storage	Support Micro SD/SDHC/SDXC card (12 8G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection , video tampering, network disconnected , IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP ™ , SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 , Bonjour
General Function	One – key reset, anti – flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version	V5.5.2
API	ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View	Up to 6 channels
User/ H ost	Up to 32 users 3 levels: Administrator, Operator and User
Client	iVMS – 4200 , Hik – Connect, iVMS – 5200
Web Browser	IE8+, Chrome 31.0 – 44, Firefox 30.0 – 51, Safari 8.0+
Communication Interface	1 RJ45 10M/ 100M self – adaptive Ethernet port
Video Output	No
On - board storage	Built – in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC	H.264 and H.265 encoding
Reset Button	Yes
Operating Conditions	– 30 °C to + 60 °C ( – 22 °F to + 140 °F), Humidity 95% or less (non – condensing)
Power Supply	12 V DC ± 2 5 %, Φ 5.5 mm coaxial power plug PoE (802.3a f , class 3 )
Power Consumption and C urrent	12 VDC , 0. 5 A, max. 6 W PoE (802.3af, 3 7 V to 57V), 0. 2 A to 0. 1 A, max. 7 .5W
Protection Level	IP6 7 TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material	Metal
