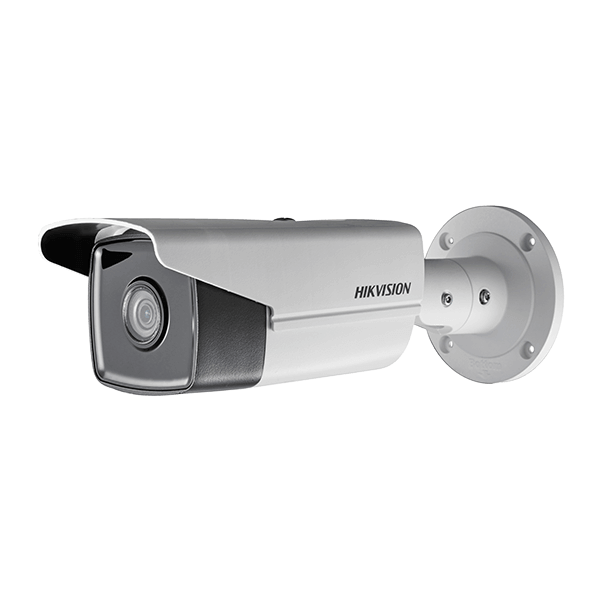

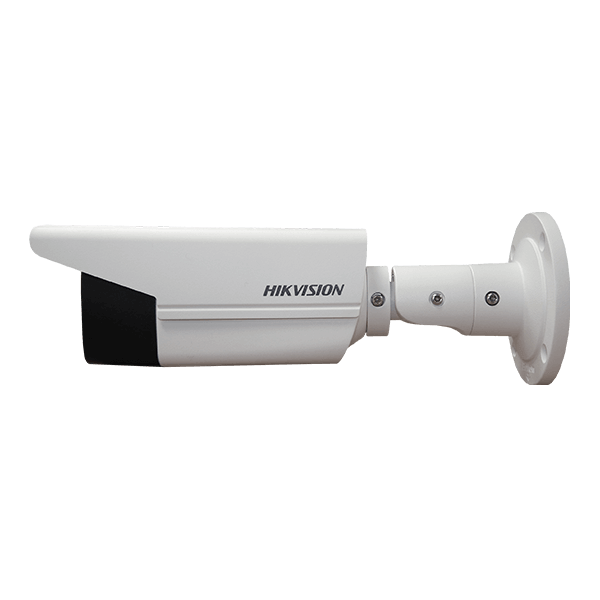

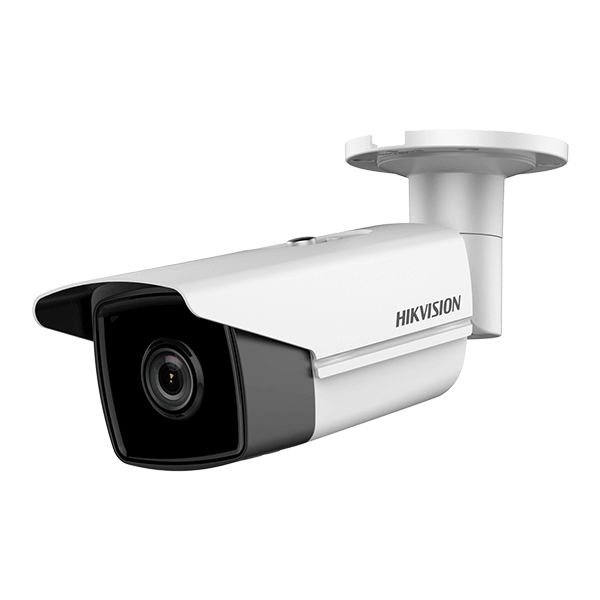

EXIR Bullet Camera I3/I8
HIKVISION BULLET DS-2CD2T22WD, 1/2.8” Progressive Scan CMOS, 2-megapixel resolution, Digital WDR, 3D DNR, 30 meters IR range, 12V DC±10%, ICR, Wall mount bracket is included DS-1296ZJ, 4mm lens
| Weight | 1.2 kg |
|---|---|
| Dimensions | 29.9 × 8.5 × 8.6 cm |
| Image Sensor | 1/2.8’’ Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @(F1.2,AGC ON), 0.028Lux @(F2.0,AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s ~ 1/10,000s |
| Slow Shutter | Support |
| Lens | (-I3: 4,6mm; -I5: 4,6,12mm; -I8: 6,12,16mm) @F2.0 angle of view:90°(4mm),53.9°(6mm), 24.3°(12mm),18.9°(16mm) |
| Lens Mount | M12 |
| Day & Night | IR cut filter with auto switch |
| WDR | 120dB |
| Video Compression | H.264/MJPEG/H.264+ |
| H.264 Type | Main Profile |
| Video Bit Rate | 32Kbps – 16Mbps |
| Max. Resolution | 1920 × 1080 |
| M ax Frame Rate | 50Hz:Mainstream:25fps(1920×1080),25fps(1280×960),25fps(1280×720) |
| Image Enhancement | BLC/3D DNR/ROI |
| Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Day/Night Switch | Auto/Schedule/Triggered by Alarm In |
| Network Storage | NAS (Support NFS,SMB/CIFS) |
| Detection | Intrusion detection,Line crossing detection, Motion detection,Dynamic analysis |
| Alarm Trigger | Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Security | Anti-Flicker,heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering,Anonymous access |
| Standard | ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI) |
| Communication Interface | 1 RJ45 10M/100M Ethernet interface |
| Operating Conditions | -30 °C –60 °C (-22°F –140°F), Humidity 95% or less (non-condensing) |
| Power Supply | 12V DC±25%, PoE (802.3af Class3) |
| Power Consumption | -I3: Max. 6W; -I5: Max. 7.5W; -I8: Max. 10.5W |
| Material | Front Cover: Plastic; Body: Metal; Sun shield: Plastic |
| Ingress Protection level | IP67 |
| IR Range | -I3: 30 meters; -I5: 50 meters; -I8: 80 meters |
| O rder Model | DS-2CD2T22WD-I3, DS-2CD2T22WD-I5, DS-2CD2T22WD-I8 |
