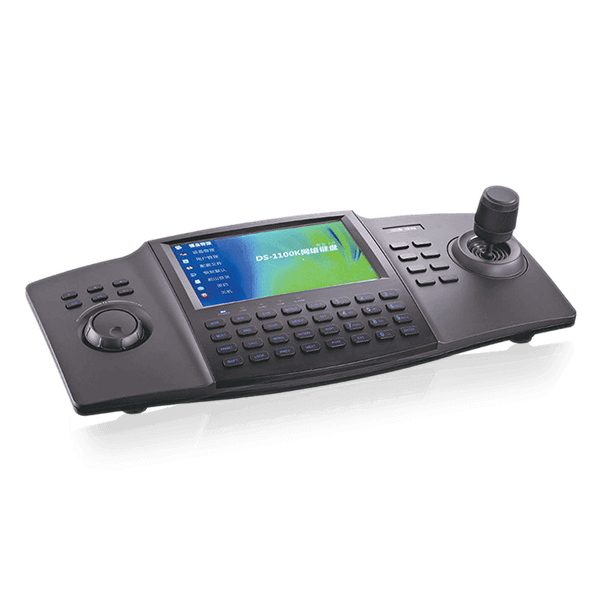

DS-1100KI Network Keyboard
HIKVISION NETWORK CONTROLLER DS-1100KI with full control and programming of PTZ camera heads. It is also possible to control many DVRs from one keyboard.
Features:
- 7’’ TFT touch screen at 800×480 resolution
- 4-axis joystick
- Live view and playback of video on the screen at up to 1080P resolution;
- Compatible with NVR/DVR/DVS, matrix, network camera/dome, video wall controller, etc.
- Macro command operation
- Display of decoded video on monitor or video wall
- Shortcut keys for dome control, setting and calling of preset, patrol and pattern
- Shortcut keys for playback operation
- Shortcut keys for the input group and output group
- Shortcut keys for wiper and light control operation
- 1-channel video decoding for local live view
- Video capture and recording to local U-flash disk
- Support 3 operators and each user is allowed to operate 1280 devices
- Support configuration by the WEB server
- Support configuration by the Keyboard Configuration Tool
- Configuration and control of the MVC system
- Support control of the analog matrix with the protocol of ZT-1.0, ZT-2.0, EXTRON or CREATOR
- Control of up to 255 analog domes by RS-485 connection
- Accessible by the platform software
